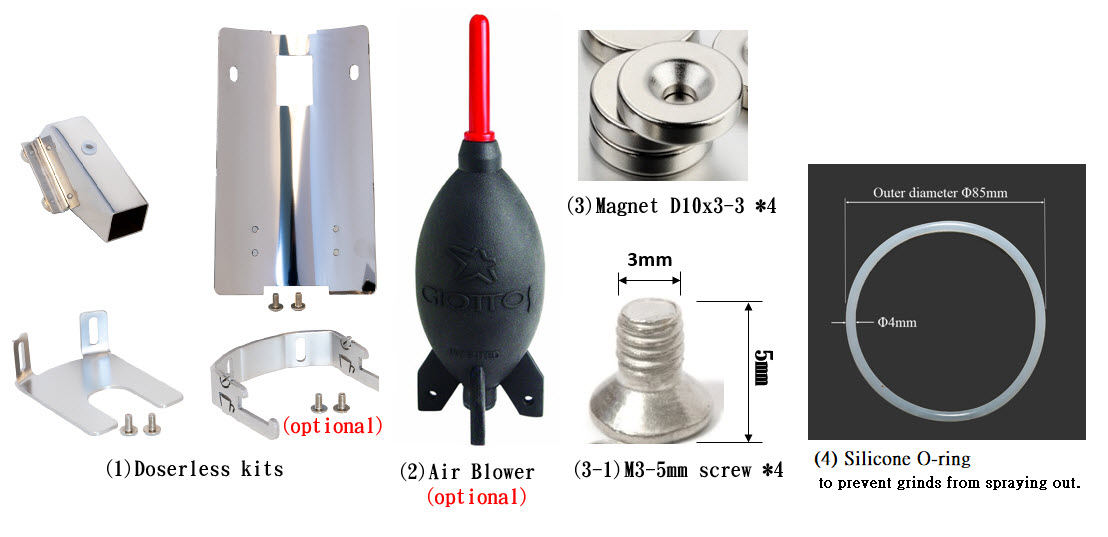

Mazzer Kony doserless mod

Description

If your Mazzer Kony is an Electronic or Automatic version, it need to make a jumper wire attached to the junction strip on the electronic base to bypass the electronic control panel or micro switch.

◆ If your grinder is an Automatic version, you need to remove the microswitch of the doser & hopper very carefully.

---

A.The hopper have two red wires attached to the junction strip on the base as indicated A. The switch is normally closed so you need to make a jumper wire to replace the switch as shown:

---

B.The doser have two grey wires attached to the junction strip on the base.  The switch is normally closed so you need to make a jumper wire on the switch as indicated B.

◆ If the two jumpers are completed successfully, turn on the power then the motor will work. Turn off the power then the motor will stop.

---

◆ If your grinder is an Electronic version, you need to remove the safe switch of the doser and the electronic control panel very carefully.

---

A.The hopper have two red wires attached to the junction strip on the base as indicated ①. The switch is normally closed so you need to make a jumper wire to replace the switch as shown.

---

B.The electronic control panel have green, black, blue, brown four wires attached to the junction strip on the base. You need to make a jumper wire to cross the green and brown wires, and remove the 4 wires as shown as indicated ②.

◆ Please note that if the connect position of the jumper is wrong, it will cause electrical shorts, burn the fuse, and even more serious damage. If you do not have proper electrical safety knowledge, please do not try to modify it.
